DQ shalloow bottom bucket

DQ shallow bottom bucket

Big
  • Material:Plastic
  • Model:YT-DQ type
Feedback
Compared to the deep bottom bucket, it can be installed with less spacing, thus increase the elevator capacity




Usage:

1. Suitable for high-speed elevator or light bulk material lifting;

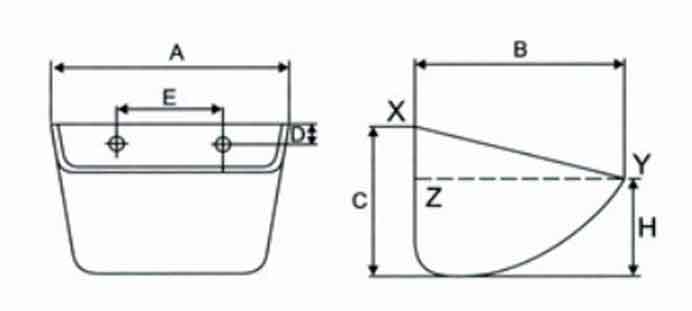

2. Recommended minimum bucket spacing: width of the bucket projection “B”+ 25mm , which can be appropriately reduced according to elevator capacity requirement;
3. Recommended elevator velocity ≤ 3.5m /s ;

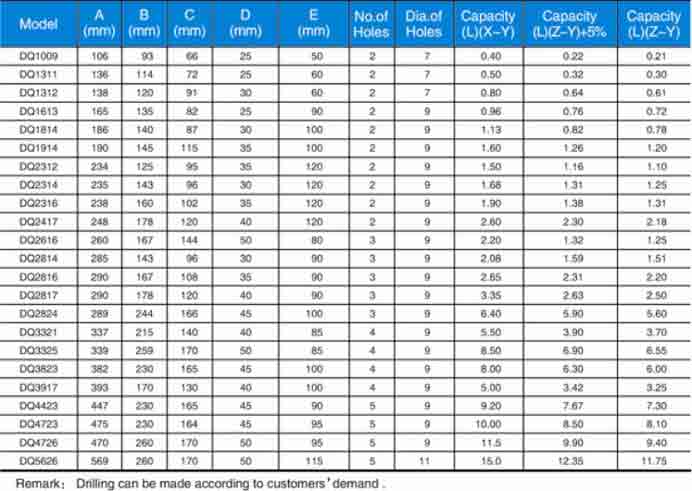

4. Recommend using “Z-Y+5%” as usable capacity for engineering purpose
